A small collection of tools which may also be used commercially!
TP-Tools @Github
Windows Apps
We offer a small selection of Windows apps. These support you in the commissioning or monitoring of Fanuc robots. The tools offered here for download are free of charge and may be used commercially.
Furthermore the programs are digitally signed!
HMI
"Fullscreen"- Browser
FRIEX-Browser
FREEWARE
With the Friex-Browser you can make the most of the web interface of older and newer Fanuc controllers!

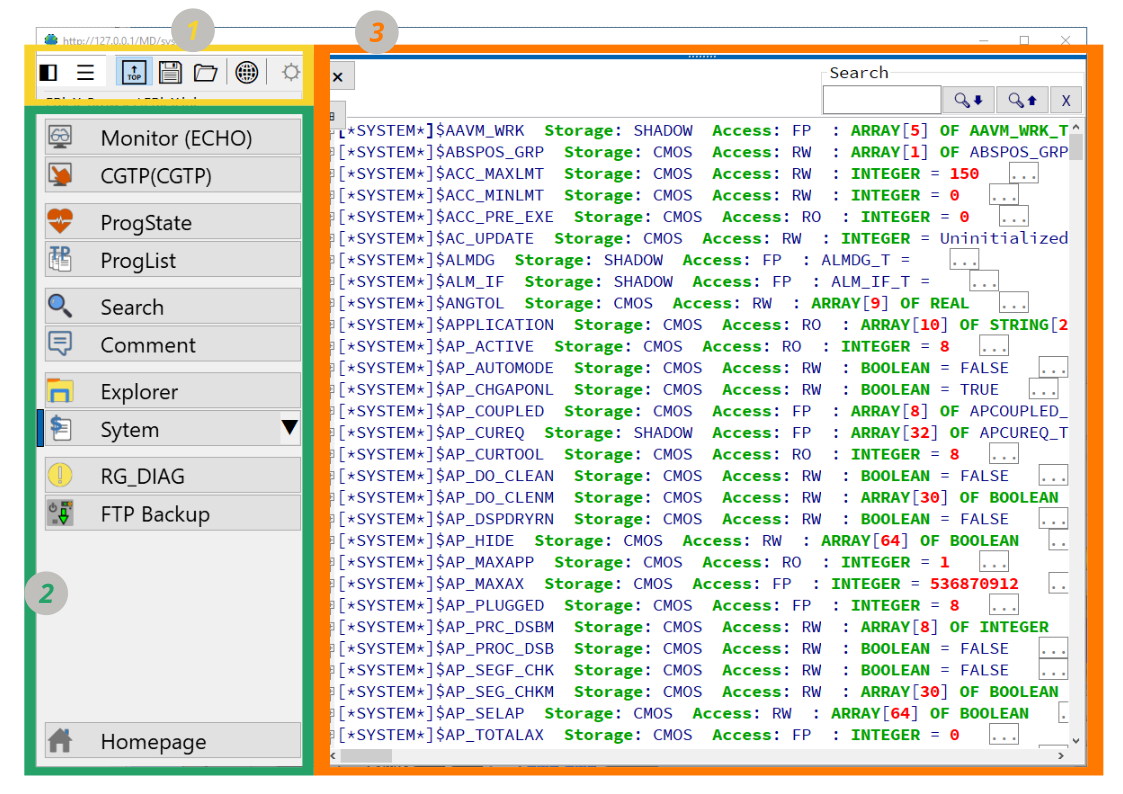

Friex main window
1.Toolbar 2.Command-Buttons 3. Content
Features:
- No installation necessary
- small file size (can be copied to any project folder)
- native programming (fast, hardly any "overhead")
- integrated help
- uses the Trident engine of the Internet Explorer
- ActiveX-Controls can be used (if necessary release once in the firewall)
- no configuration in IE necessary like e.g. with trusted sites.
- no IE mode in Edge necessary
- digitally signed
more screenshots

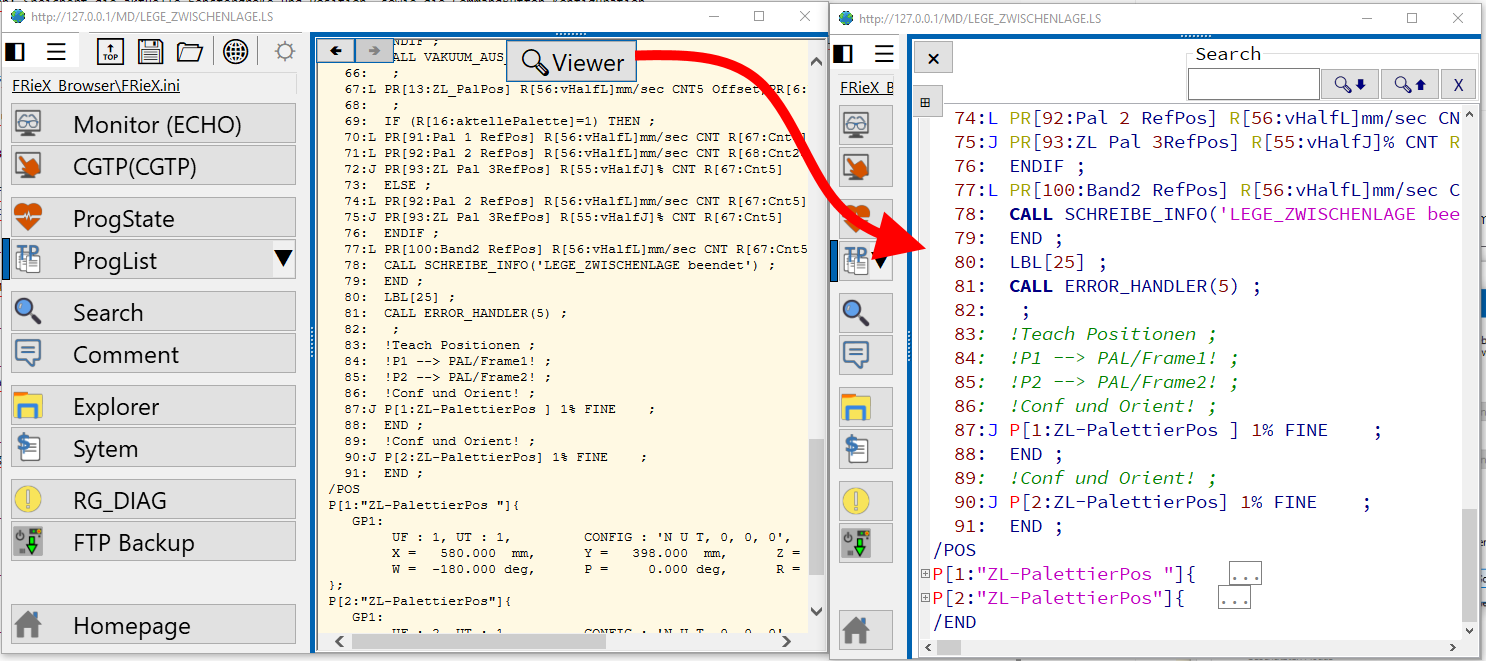

Comparison Browser und Viewer

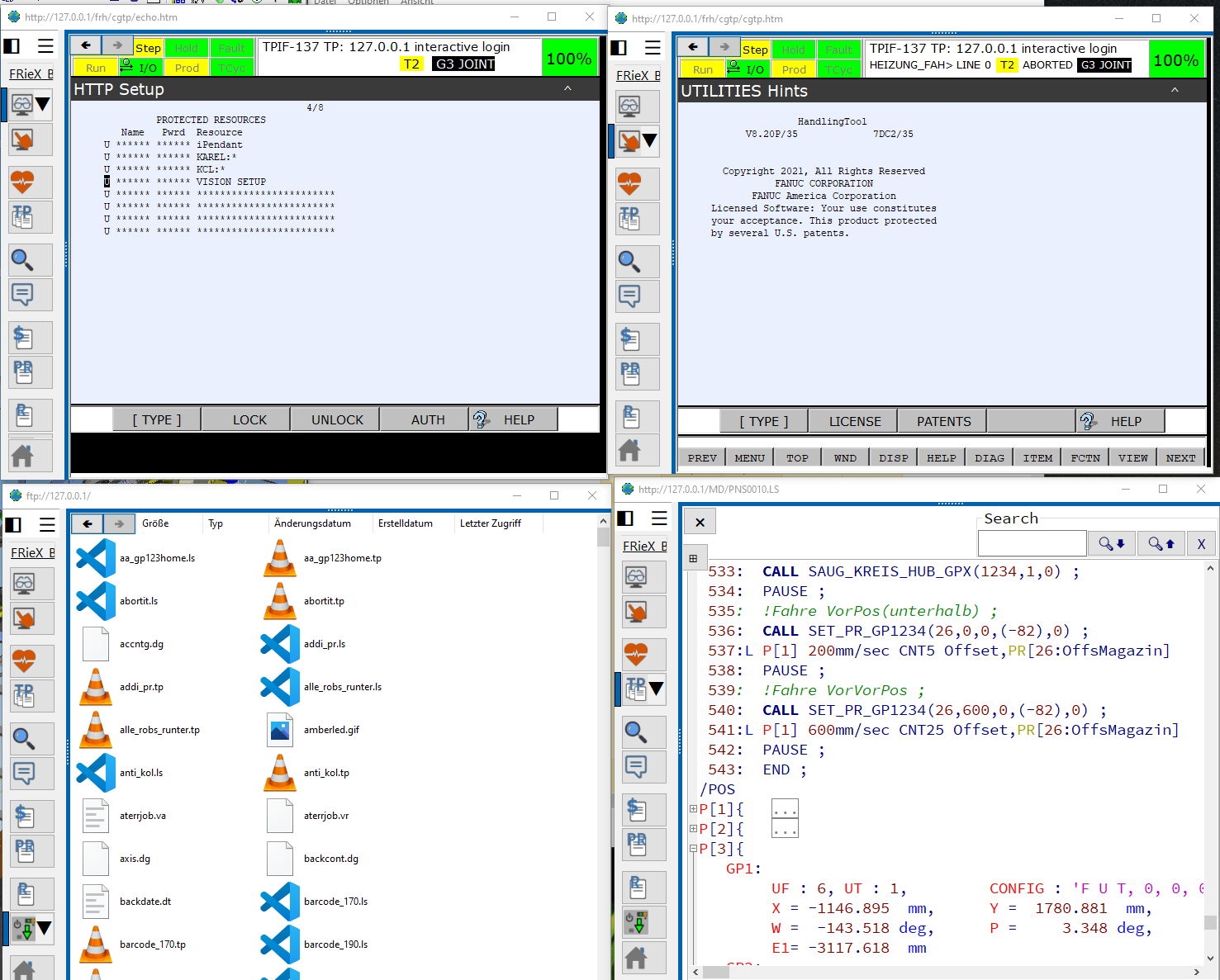

Friex 4 App Windows
1. Fanuc -ECHO-
2. Fanuc -CGTP-
3. FTP-Backup
4. Program-Viewer
Download
The ZIP folder contains the program and all necessary information.
Friex-Browser download and help
Note: FRIEX will be replaced by our IBN-Tool!
IBN-Tool
This program is intended for the commissioning of Fanuc robots.
It is currently under active development. A release is planned for the beginning of September 2025.
An early developer version and the ideas and documentation for the program can be found here:
https://github.com/Backdate/IBN-Tool
FR_Backup
FREEWARE
A small backup tool to create backup copies of a robot via FTP.
Features:
- easiest operation
- can be used as a command line tool or as a "GUI" program

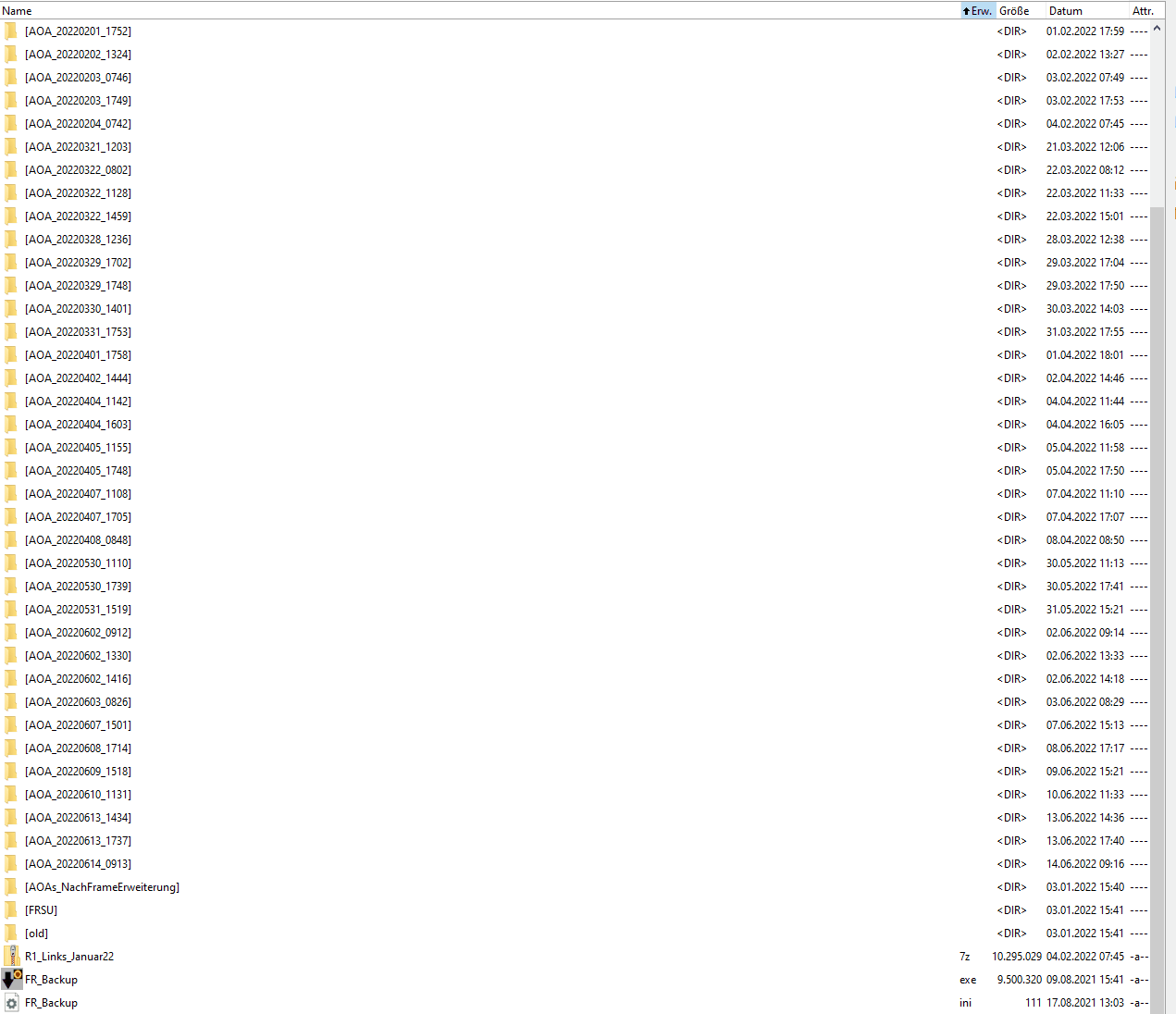

FR_Backup Nutzung
Download
The ZIP folder contains the program and all necessary information.
